Metro Track Shelving

Life Science Products – Finished Goods Metro Track Shelving

Metro Track Shelving

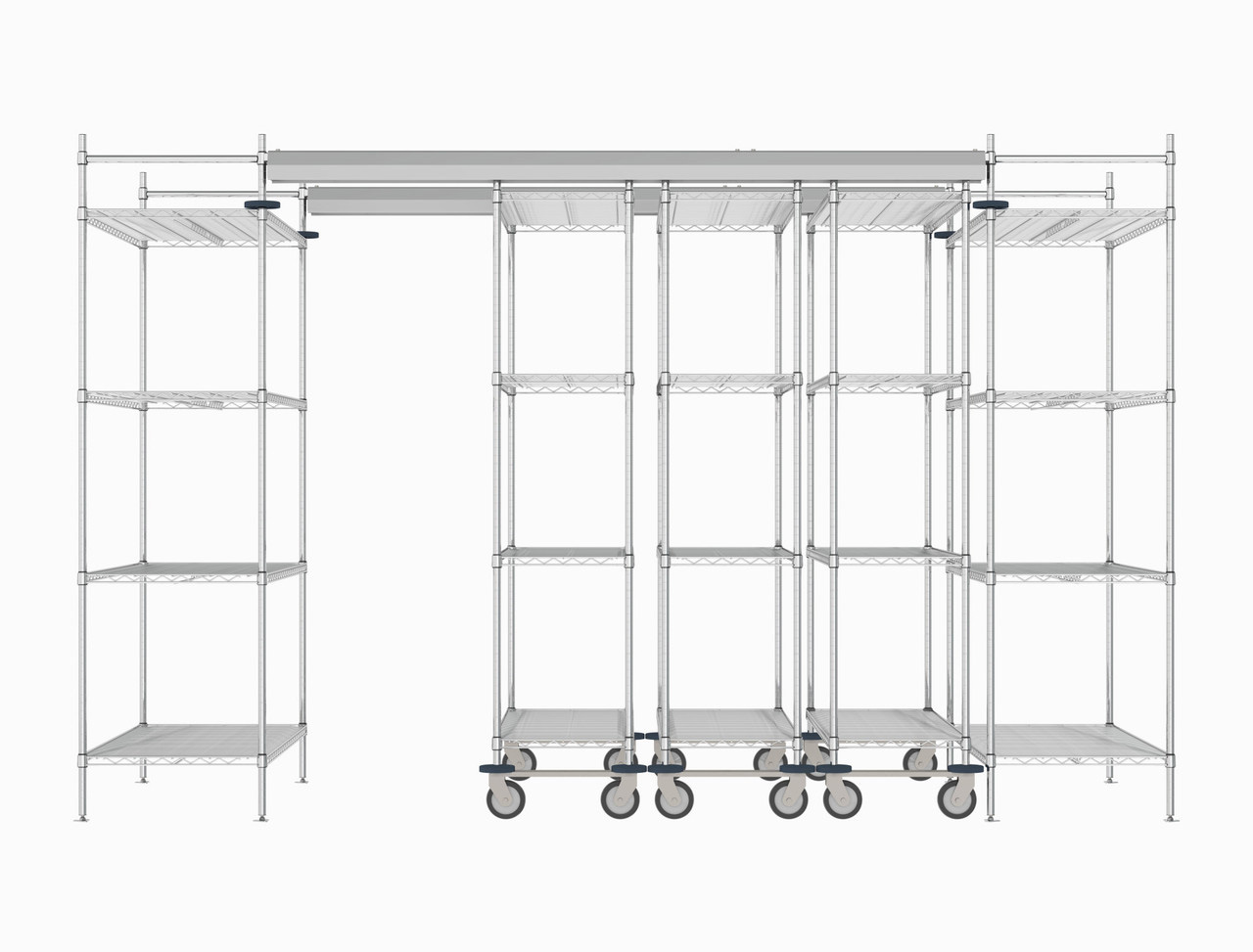

Metro Top-Track Overhead Track Shelving with Super Erecta Wire Shelves Avavlible in Chrome, Stainless Steel, Metroseal Green and Metroseal Gray

Product Description

Getting the most out of every inch is easier than ever with Metro Top-Track High-Density Storage and our Easy Order kits. Take advantage of these great benefits: Floors are easier to clean. Utility carts can be rolled into and out of the active aisle. The guide track on top compensates for uneven floor surfaces and keeps units in alignment. Mobile units are designed to address medium-duty applications. The weight capacity of each Top-Track mobile unit is 900 lb. (410kg).

Specifications Sheet Sell Sheet Instructions for Use

Stationary End Unit Kit (Choose one kit for each system)

Includes 86″ high posts (2184mm) high stationary posts, and hardware necessary for connecting stationary end units to tracks. Shelves are sold separately.

Chrome

Metroseal Green

Metroseal Gray

Stainless Steel

Fits Shelf Width (in. / mm) Approx Pkd. Wt. (lbs/kg)
Catalog Number Catalog Number Catalog Number Catalog Number
18 / 457 50.0 / 22.7 TTE18C TTE18K3 TTE18K4 TTE18S
21 / 530 50.5 / 22.9 TTE21C TTE21K3 TTE21K4 TTE21S
24 / 610 51.0 / 23.1 TTE24C TTE24K3 TTE24K4 TTE24S

Note: All kits come with plated foot plates. Stainless Steel Foot plates must be ordered separately

Stationary Intermediate Units

Required when overall desired track length exceeds 21’ (6405mm). Optional when track length is under 21′ (6405mm). Includes 86″ high posts (2184mm) high stationary posts, and hardware necessary for connecting one stationary intermediate unit to tracks. Shelves are sold separately.

Chrome

Metroseal Green

Metroseal Gray

Stainless Steel

Fits Shelf Width (in. / mm) Approx Pkd. Wt. (lbs/kg)
Catalog Number Catalog Number Catalog Number Catalog Number
18 / 457 27.1 /12.3 TTA81C TTA18K3 TTA18K4 TTA18S
21 / 530 27.6/ 12.5 TTA21C TTA21K3 TTA21K4 TTA21S
24 / 610 28.1 / 12.7 TTA24C TTA24K3 TTA24K4 TTA24S

Note: All kits come with plated foot plates. Stainless Steel Foot plates must be ordered separately

Mobile Units (One kit required per mobile unit)

Includes four 74″ (1880mm) high mobile posts, four casters, donut bumpers, guide rollers, and other hardware to assemble a mobile unit. Shelves are sold separately. Using 18″ (457mm) wide mobile units: Maximum allowable shelf length is 60″ (1524mm). Maximum of five 18″ (457mm) units are allowable between two stationary units.

Chrome

Metroseal Green

Metroseal Gray

Stainless Steel

Fits Shelf Width (in. / mm) Approx Pkd. Wt. (lbs/kg)
Catalog Number Catalog Number Catalog Number Catalog Number
18 / 457 32.0 /14.5 TTM18C TTM18K3 TTM18K4 TTM18S
21 / 530 33.0 / 15.0 TTM21C TTM21K3 TTM21K4 TTM21S
24 / 610 34.0 / 15.4 TTM24C TTM24K3 TTM24K4 TTM24S

Note: All chrome kits come with chrome plated casters. All Metroseal and Stainless kits come with stainless casters

Track Sets

Includes tracks and hardware needed to assemble track runs up to 21′ (6400mm)

Dimension Length (ft / mm) Approximate Packed Weight (lbs / kg)
2.5 / 762 15.0 / 6.8 TTS2.5NA
6 / 1828 40.5 / 18.2 TTS6NA
7 / 2135 47.5 / 21.3 TTS7NA
8 / 2440 56.0 / 25.2 TTS8NA
9 / 2743 62.5 / 28.1 TTS9NA
10 / 3048 69.5 / 31.2 TTS10NA
11 / 3352 76.5 / 34.4 TTS11NA
12 / 3657 83.5 / 37.5 TTS12NA
13 / 3962 92.0 / 41.4 TTS14NA
Dimension Length (ft / mm) Approximate Packed Weight (lbs / kg)
14 / 4267 98.0 / 44.1 TTS14NA
15 / 4572 106.5 / 47.9 TTS15NA
16 / 4877 113.5 / 51.0 TTS16NA
17 / 5182 121.0 / 54.4 TTS17NA
18/ 5486 128.0 / 58.0 TTS18NA
19 / 5791 135.0 / 60.7 TTS19NA
20 / 6096 142.0 / 63.9 TTS20NA
21 / 6400 149.0 / 67.0 TTS21NA

Product will be free from defects in material and workmanship under normal use, service and maintenance for a period of one (1) year from the date of shipment of the Product by Seller, unless otherwise specified by Seller in writing.

Want to place an order for this, or other Metro Products? Contact us for your custom quote.

Metro qwikTRAK Floor Track Shelving with Super Erecta Chrome Wire Shelves

Product Description

Metro qwikTRAK Floor Track Shelving with Super Erecta Chrome Wire Shelves

Aluminum and Stainless Steel floor tracks provide a smooth, gliding surface for mobile units. Floor tracks protect the floors from wear and tear and do not require to be mounted to the floor. Floor tracks compensate for rough or choppy floor surfaces.

Specifications Sheet

Brochure

Instructions for Use
